LV215 High Current Battery Connectors , IP67 High Current DC Connector

Neo Power Energy Tech Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

LV215 High Current Battery Connectors , IP67 High Current DC Connector

  • 1
  • 2

Brand Name : NeoPower

Model Number : CHVJT0

Certification : TUV CE IEC FCC RoHs GB/T

Place of Origin : China

MOQ : 1 PC

Price : Negotiable according to Quantities

Payment Terms : Western Union, MoneyGram

Supply Ability : 50000 per day

Delivery Time : 3~7 days

Packaging Details : Standard Export Carton Box

Rated Current : 300A max

Rated Voltage : 1000V DC

Insulation Resistance : 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%)

Test Voltage : 3000V AC

Minimum Mating Cycles : 500 times

Wire Range : 50mm2~70mm2

Protection Grade : IP67 (mated)

Operation Temperature : -40℃ ~+125 ℃

Salt Spray Resistance : 48H (mating state)

Standard : USCAR-2, USCAR37,RoHS, LV215

Contact Now

LV215 High Current Battery Connectors , IP67 High Current DC Connector

Part No.:CHVJT0

Description:

It is mainly used for the high voltage high current transmission on electric vehile by line to line method, such as battery pack and PDU connection.

Features:

  • Touch Proof
  • Compact Robust Design ,Various Termination Options
  • EMI Shielded
  • Quick Lock and Press-to- Release Design
  • Competitive price from factory with Small MOQ to help you reduce inventories and avoid market risks;
  • Accept OEM & ODM for your customized requirement;

Application:

  • Battery Packs
  • Electrical Motorcycle
  • Electrical Scooters
  • Ebikes

Parameters:

Electrical Performance
Rated Current300A max
Rated Voltage1000V DC
Insulation Resistance

5000 mΩ Min (Dry)

200 mΩ Min (RH 95%)

Test Voltage3000V AC
Mechanical Performance
Minimum Mating Cycles500 times
Wire Range50mm2~70mm2
Environment Performance
Protection GradeIP67 (mated)
Operation Temperature-40 ℃ ~+85 ℃
Salt Spray Resistance48H (Mating State)
Reference Standard
USCAR-2
USCAR-37
RoHS
LV215

Product Pictures:

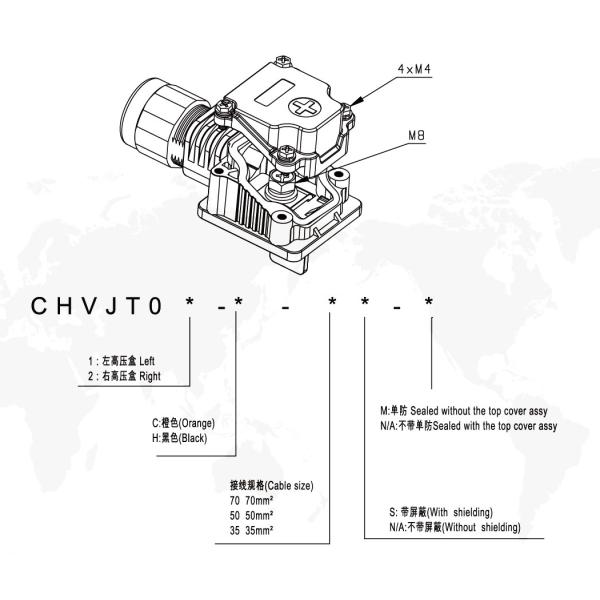

Drawings:

Company Profile

NeoPower is dedicated to high-voltage/ high-current waterproof connectors & cables, applicable for new energy battery pack, EV, heavy-duty machinery, industrial connection, powertrain system, solar/wind energy storage, smart grid, AGV, etc.

NeoPower has two manufacture bases located in Huizhou, Guangzhou Province for plastic shell connectors, and in Changzhou, Jiangsu Province for metal shell connectors respectively. With rich expertise and high-standard management, NeoPower delivers top quality products and excellent services to customers around the world.


Certifications & Approvals


The company has passed IATF 16949:2016, ISO 9001:2015 quality control system, and its products are CE, TVU, RoHs approved.
